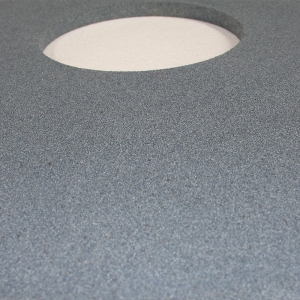

Crankshafts Straight Ceramic Grinding Wheel (Shape Code 1)
The wheels are mainly used for grinding all kinds of crankshafts and camshafts of auto, tractor, ship engine, as well as transport machinery, etc. The wheels have uniform structure. Their static balance performance is superior to the national standard specified value 30%-50%. The thickness deviation of a group crankshaft grinding wheels is not more than 0.2mm. The parallelism tolerance of two end faces is not more than 0.1mm. It has reached the international advanced level.
Main Size mm
D | T | H |
650 | 33 40 | 305 |
750 | 22 25 28 33 40 43 58 61 67 | |
900 | 22 25 28 32 33 38 40 42 43 47 52 55 58 61 72 75 78 82 90 | 305 304.8 |
1065 | 22 25 32 38 42 47 52 55 | |
1100 | 25 32 33 38 40 43 55 58 61 72 75 78 82 86 90 | |
1200 | 120 150 | 305 |
1250 | 42 75 80 | |
1400 | 80 86 120 | |
1600 | 80 86 120 |
