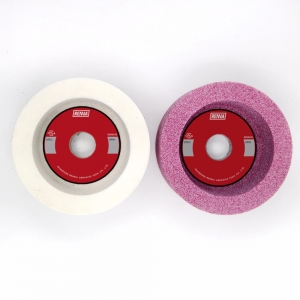

Cup Shape Grinding Wheel (Shape Code 6)
Our Tool Grinding Wheels are of reasonable and homogeneous structure, strong cutting performance, and don’t burn workpieces. They are mainly used for sharpening milling cutter, reamers, expanding drills, broaches, paper cutting knife, tobacco cutter, plate-shaped lathe tool, slotting cutter, drill, hobbing cutter, sawtooth, etc.
The wheels are usually used for sharpening milling cutters, reamers, bore drill, broaching tool, paper cutter, tobacco cutter, etc. The wheels with diameter 200-250mm can be used for grinding lathe tools.
Main Size mm
D | T | H | W | E | R |
40 | 25 | 13 | 4 | 5 | 3 |
50 | 32 | 13 | 5 | 7 | 3 |
60 | 32 | 20 | 5 | 7 | 3 |
75 | 40 | 20 | 5 | 8 | 3 |
100 | 50 | 20 | 7.5 | 10 | 4 |
125 | 63 | 32 65 | 7.5 12.5 | 13 | 4 |
150 | 63 | 65 | 25 | 25 | 5 |
12.5 | 13 | ||||
80 | 32 | 12.5 | 15 | ||
200 | 63 | 32 75 | 15 | 18 | 5 |
100 | 100 | 25 | 25 | ||
250 | 100 | 150 | 25 | 25 | 5 |
