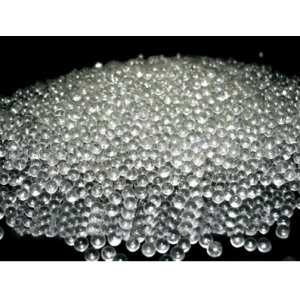

1) Product Introduction
Glass bead for sandblasting has the features of chemical stability, high mechanical intensity. They can be blasted onto the object surface with compressed air and can be used on compress glass, rubber, plastic, moulds
with metal casting or compressing. The jetting balls would help reduce elasticity of the surface materials and increase wearing capacity.
2) Available Specification
For sandblasting
No. | Diameter(um) | Corresponding sieve size |
1 | 850-425 | 20-40mesh |
2 | 425-250 | 40-60mesh |
3 | 250-150 | 60-100mesh |
4 | 150-105 | 100-140mesh |
5 | 105-75 | 140-200mesh |
6 | 75-45 | 200-325mesh |
Other application of glass beads are as follows:
1. Clear diverse moulds of impact forging, forging, glass, rubber and plastic, metal casting and extrusion.
2. Eliminate tensile stress, increase fatigue life and enhance stress corrosion resistance. For example, aircraft engine
turbo, vane, shaft, undercarriage, diversified springs and gears, etc.
3. Clean and remove slitter edge and burr on the circuit plate and plastic-sealed geminate transistors before stannum soldering
4. Remove stems in the piston and cylinder and provide bright and half-lackluster surface for medical mechanical
instruments and automobile parts
5. Clear electromotor and such parts as loop, electric brush and rotor of during heavy repair
6. Clean up and remove burr of metal tube and precisely-melten non-ferrous metal tube.
High Strength Glass Beads for blasting
Nominal Diameter (80%) XIAGUANG Metal Finishing Beads | ||||||
Designation | US Sieve | Inches Max | Inches Min | Microns Max | Microns Min | Min % Round |
A | 20-30 | .0331 | .0234 | 850 | 600 | 65 |
AAA | 25-45 | .0278 | .0139 | 710 | 355 | 65 |
B | 30-40 | .0234 | .0165 | 600 | 425 | 65 |
C | 40-60 | .0165 | .0098 | 425 | 250 | 75 |
AA | 40-70 | .0165 | .0083 | 425 | 212 | 70 |
D | 50-70 | .0117 | .0083 | 300 | 212 | 75 |
AB | 50-80 | .0117 | .0070 | 300 | 180 | 70 |
AC | 60-120 | .0098 | .0049 | 250 | 125 | 80 |
AD | 70-140 | .0083 | .0041 | 212 | 106 | 80 |
AE | 100-170 | .0059 | .0035 | 150 | 90 | 85 |
AG | 120-270 | .0049 | .0021 | 125 | 53 | 85 |
AH | 170-325 | .0035 | .0017 | 90 | 45 | 85 |
Nominal Diameter MIL-PRF-9954 | ||||||
Designation | US Sieve | Inches Max | Inches Min | Microns Max | Microns Min | Min % Round |
3 | 20-30 | .0331 | .0234 | 850 | 600 | 65 |
4 | 30-40 | .0234 | .0165 | 600 | 425 | 70 |
5 | 40-50 | .0165 | .0117 | 425 | 300 | 70 |
6 | 50-70 | .0117 | .0083 | 300 | 212 | 80 |
7 | 60-80 | .0098 | .0070 | 250 | 180 | 80 |
8 | 70-100 | .0083 | .0059 | 212 | 150 | 80 |
9 | 80-120 | .0070 | .0049 | 180 | 125 | 80 |
10 | 100-170 | .0059 | .0035 | 150 | 90 | 90 |
11 | 120-200 | .0049 | .0029 | 125 | 75 | 90 |
12 | 140-230 | .0041 | .0025 | 106 | 63 | 90 |
13 | 170-325 | .0035 | .0017 | 90 | 45 | 95 |
3) Technical references
Appearance: Clean and transparent, no visible bubbles and impurity.
Density: 2.4-2.6g/cm3
Hardness: 6-7(Moh's)
Spherical beads: ≥75%
SiO2 content:＞72%
4) Package
1. 25kg plastic bags on wooden or plywood or plastic pallet.
2. 25kg paper bags on wooden or plywood or plastic pallet.
3. Jumbo sack bags.
